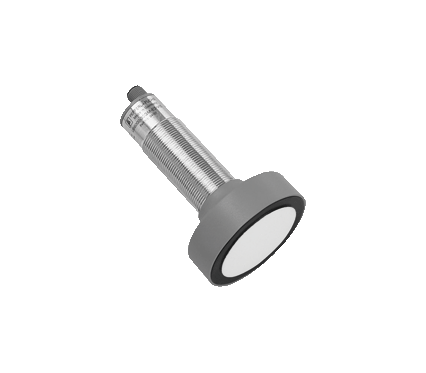

UB6000-30GM-E5-V15

Ultraäänianturi kytkinlähdöllä sarja 30GM

  • Kytkinlähtö
  • Aseteltavissa 5 erilaista lähtötapaa
  • Asettelu ohjelmointitulolla 2 (WH)
  • Synkronointi optiona
  • Lämpötilakompensointi
General specifications
Sensing range 350 … 6000 mm
Adjustment range 400 … 6000 mm
Dead band 0 … 350 mm
Standard target plate 100 mm x 100 mm
Transducer frequency approx. 65 kHz
Response delay approx. 650 ms
Indicators/operating means
LED green solid: Power-on
flashing: program function object detected
LED yellow solid: switching state switch output
flashing: program function
LED red normal operation: ”fault”
program function: no object detected
Electrical specifications
Operating voltage 10 … 30 V DC , ripple 10 %SS
No-load supply current ≤ 50 mA
Input/Output
Synchronization bi-directional
0 level -UB…+1 V
1 level: +4 V…+UB
input impedance: > 12 KOhm
synchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms
Synchronization frequency
Common mode operation max. 7 Hz
Multiplex operation ≤ 7 Hz / n , n = number of sensors , n ≤ 5
Input
Input type 1 program input,
operating range 1: -UB … +1 V, operating range 2: +4 V … +UB
input impedance: > 4.7 kΩ; program pulse: ≥ 1 s
Output
Output type 1 switch output PNP , Normally open/closed , programmable
Rated operating current 200 mA , short-circuit/overload protected
Voltage drop ≤ 2.5 V
Repeat accuracy ≤ 0.5 % of switching point
Switching frequency ≤ 0.8 Hz
Range hysteresis 1 % of the set operating distance
Temperature influence < 2 % of far switch point
Approvals and certificates
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -25 … 70 °C (-13 … 158 °F)
Storage temperature -40 … 85 °C (-40 … 185 °F)
Mechanical specifications
Connection type Connector M12 x 1 , 5-pin
Degree of protection IP65
Material
Housing nickel plated brass; plastic components: PBT
Transducer epoxy resin/hollow glass sphere mixture; polyurethane foam
Mass 250 g
