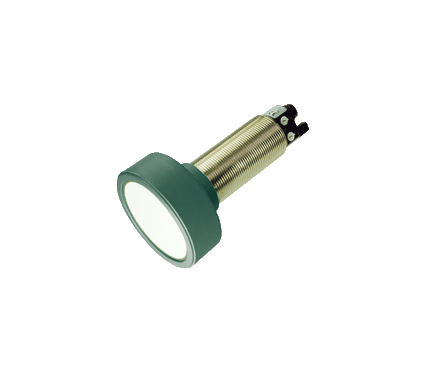

UC6000-30GM70-IE2R2-V15

Ultraäänianturi analogialähdöllä sarja 30GM70

  • Analogialähtö 4 … 20 mA
  • Kytkinlähtö PNP
  • Synkronointi optiona
  • Lämpötilakompensointi
  • Aseteltavissa ULTRA-PROG-IR ohjelmalla ja anturin potentiometreillä
General specifications
Sensing range 350 … 6000 mm
Adjustment range 400 … 6000 mm
Dead band 0 … 350 mm
Standard target plate 100 mm x 100 mm
Transducer frequency approx. 80 kHz
Response delay ≤ 275 ms
Nominal ratings
Temperature drift ≤ ± 1.5 % of full-scale value
Indicators/operating means
LED yellow switching state switch output
LED green/yellow yellow: object in evaluation range
green: Teach-In
Potentiometer switch output adjustable
Electrical specifications
Operating voltage 20 … 30 V DC (including ripple)
No-load supply current ≤ 50 mA
Interface
Interface type Infrared
Input/Output
Input/output type 1 synchronization connection, bidirectional ( Factory setting: synchronized mode ) / Teach-In input
0 Level ≤ 3 V
1 Level ≥ 15 V
Input impedance typ. 900 Ω
Number of sensors max. 10
Switching output
Output type 1 switch output PNP, NO ( NC contact programmable )
Default setting 400 … 6000 mm ( adjustable via potentiometer )
Repeat accuracy ± 9 mm
Operating current 300 mA , short-circuit/overload protected
Switching frequency ≤ 1 Hz
Switching hysteresis 60 mm ( programmable )
Voltage drop ≤ 3 V
Off-state current ≤ 10 µA
Analog output
Output type 1 current output 4 … 20 mA , ascending/descending programmable
Default setting rising ramp ; evaluation limit A1: 400 mm ; evaluation limit A2: 6000 mm
Load resistor ≤ 500 Ω
Approvals and certificates
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -25 … 70 °C (-13 … 158 °F)
Storage temperature -40 … 85 °C (-40 … 185 °F)
Mechanical specifications
Connection type Connector M12 x 1 , 5-pin
Degree of protection IP65
Material
Housing brass, nickel-plated
Transducer epoxy resin/hollow glass sphere mixture; polyurethane foam
Mass 280 g
Construction type Cylindrical
UC6000-30GM70-IE2R2-V15
