| General specifications | ||
|---|---|---|
| Sensing range | 30 … 500 mm | |
| Adjustment range | 50 … 500 mm | |
| Dead band | 0 … 30 mm | |
| Standard target plate | 100 mm x 100 mm | |
| Transducer frequency | approx. 380 kHz | |
| Response delay | approx. 50 ms | |
| Indicators/operating means | ||
| LED yellow | indication of the switching state flashing: program function object detected |
|
| LED red | ”Error”, object uncertain in program function: No object detected |
|
| Electrical specifications | ||
| Operating voltage | 10 … 30 V DC , ripple 10 %SS | |
| No-load supply current | ≤ 50 mA | |
| Input | ||
| Input type | 1 program input, operating range 1: -UB … +1 V, operating range 2: +4 V … +UB input impedance: > 4.7 kΩ; program pulse: ≥ 1 s |
|
| Output | ||
| Output type | 2 switch outputs PNP, NO/NC, programmable | |
| Rated operating current | 2 x 100 mA , short-circuit/overload protected | |
| Voltage drop | ≤ 3 V | |
| Repeat accuracy | ≤ 1 % | |
| Switching frequency | max. 8 Hz | |
| Range hysteresis | 1 % of the set operating distance | |
| Temperature influence | ± 1.5 % of full-scale value | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007+A1:2012 IEC 60947-5-2:2007 + A1:2012 |
|
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Storage temperature | -40 … 85 °C (-40 … 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector plug M12 x 1 , 5-pin | |
| Degree of protection | IP67 | |
| Material | ||
| Housing | brass, nickel-plated | |
| Transducer | epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT | |
| Mass | 60 g | |
| Factory settings | ||
| Output 1 | Switching point: 50 mm output function: Switch point operation mode output behavior: NO contact |
|
| Output 2 | Switching point: 500 mm output function: Switch point operation mode output behavior: NO contact |
|
| Beam width | wide | |

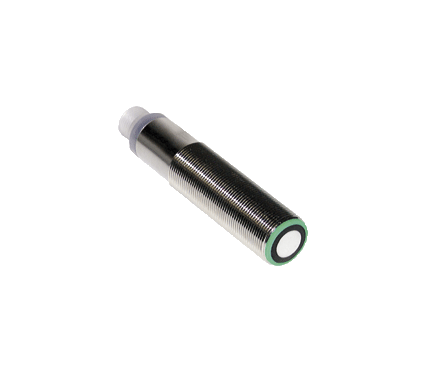

UB500-18GM75-E6-V15
Ultraäänianturi kytkinlähdöllä sarja 18GM75
- 2 Kytkinlähtöä
- Aseteltavissa 3 erilaista lähtötapaa
- Asettelu ohjelmointitulolla 5 (GY)
- Synkronointi optiona
- Lämpötilakompensointi
