| General specifications | ||
|---|---|---|
| Sensing range | 30 … 500 mm | |
| Adjustment range | 50 … 500 mm | |
| Dead band | 0 … 30 mm | |
| Standard target plate | 100 mm x 100 mm | |
| Transducer frequency | approx. 380 kHz | |
| Response delay | approx. 50 ms | |
| Indicators/operating means | ||
| LED yellow | solid yellow: object in the evaluation range yellow, flashing: program function, object detected |
|
| LED red | solid red: Error red, flashing: program function, object not detected |
|
| Electrical specifications | ||
| Operating voltage | 10 … 30 V DC , ripple 10 %SS | |
| No-load supply current | ≤ 45 mA | |
| Input/Output | ||
| Synchronization | 1 synchronous connection, bi-directional 0-level: -UB…+1 V 1-level: +4 V…+UB input impedance: > 12 kΩ synchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms |
|
| Synchronization frequency | ||
| Common mode operation | max. 95 Hz | |
| Multiplex operation | ≤ 95 Hz / n, n = number of sensors, n ≤ 5 | |
| Input | ||
| Input type | 1 program input lower evaluation limit A1: -UB … +1 V, upper evaluation limit A2: +4 V … +UB input impedance: > 4.7 kΩ, pulse duration: ≥ 1 s |
|
| Output | ||
| Output type | 1 analog output 4 … 20 mA | |
| Resolution | 0.13 mm for max. detection range | |
| Deviation of the characteristic curve | ± 1 % of full-scale value | |
| Repeat accuracy | ± 0.1 % of full-scale value | |
| Load impedance | 0 … 300 Ohm | |
| Temperature influence | ± 1.5 % of full-scale value | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007+A1:2012 IEC 60947-5-2:2007 + A1:2012 EN 60947-5-7:2003 IEC 60947-5-7:2003 |
|
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Storage temperature | -40 … 85 °C (-40 … 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector plug M12 x 1 , 5-pin | |
| Degree of protection | IP67 | |
| Material | ||
| Housing | brass, nickel-plated | |
| Transducer | epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT | |
| Mass | 60 g | |

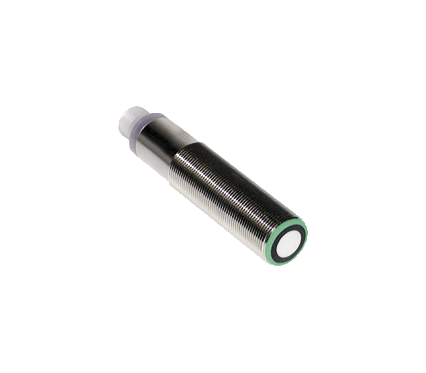

UB500-18GM75-I-V15
Ultraäänianturi analogialähdöllä sarja 18GM75
- Analogialähtö 4 … 20 mA
- Säädettävä mittausikkuna
- Asettelu ohjelmointitulolla 2 (WH)
- Synkronointi optiona
- Lämpötilakompensointi
