Technical features
Medium:
Compressed air and fluid compatible with sealing materials
Thread forms:
Tapered in conformity with ISO 7.1, BS 21, DIN 2999.
Parallel in conformity with ISO 228 Class A.
Metric in conformity with ISO R/262
Operating pressure:
Generally limited by tubing specification except where polyamide sealing washers are used (banjo bolts and M5 units). In these cases pressure is limited to 18 bar (261 psi). Flow regulating banjos are limited to 1…10bar (1…145 psi) operting range. Suitable for vacuum applications.
Ambient/Media temperature:
Generally limited by tubing specification except where polyamide sealing washers are used (banjo bolts and M5 units). In these cases pressure is limited to -20 … +70°C (-4 … +158°F)
Materials:

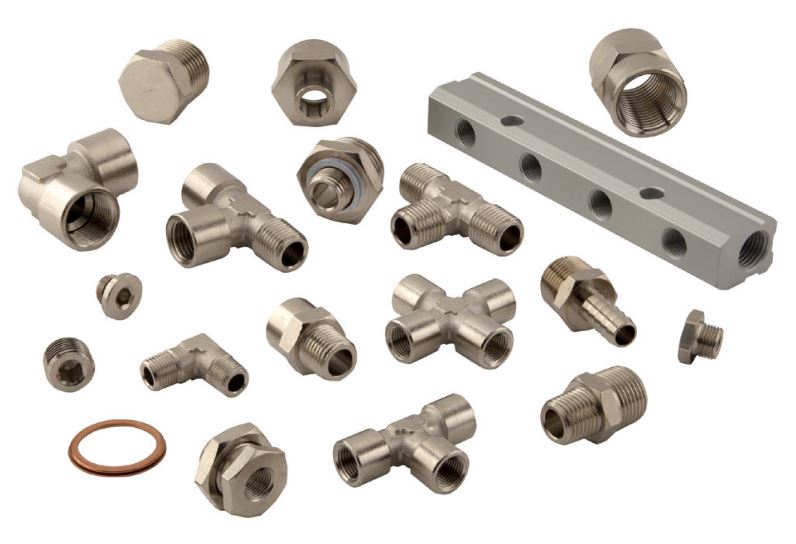

Body of the fittings are made from Brass type; OT UNI EN 12164/5 CW 614/7N and undergo to a nickel-plating process. Other materials will be specified with the fitting details. All ISO G male threads supplied with flat soft alloy washer unless stated otherwise.
