Helmiliittimet

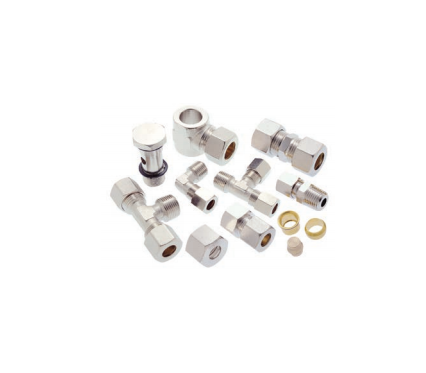

Helmiliittimet 43-sarjat

  • Putkikoot Ø 4 … 22 mm
  • Laaja valikoima, liitätäkoot 1/8″ … 1″
  • Sisältävät helmen ja mutterin
  • Tukevatekoinen liitin soveltuu vaativiin teollisuusasennuksiin
Kysy lisää

Technical features

Medium:
These fittings are designed for use with compressed air, oils, water and other fluids used in pneumatic
and low pressure hydraulic applications.
Operating pressure:
Ø 4 … 14 mm = 100 bar (1450 psi)
Ø 16 … 22 mm = 40 bar (580 psi)
These maximum working pressure
is limited by copper tubing with
1 mm wall thickness and +20 °C
(+68°F) or limited by metal and PA
tubing
Tube sizes:
4, 6, 8, 10, 12, 14, 15, 16, 18 or
22 mm
Thread sizes:
1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 1”
Tube types:
PA 11 or 12 and other plasticised
or unplasticised tubing and other
soft plastic tubing Copper,
annealed and half-hard.
Double wall brazed steel tube
(Bundy)
Ambient/Media temperature:
The maximum working temperature
is limited by the type of tubing being
used
Materials:
Brass to OT 58 UNI 5705 for all
items, except plastic washers
Plastic washers: PA
All brass items have a nickel plated
finish unless otherwise stated

43_ series Compression fittings external nut
