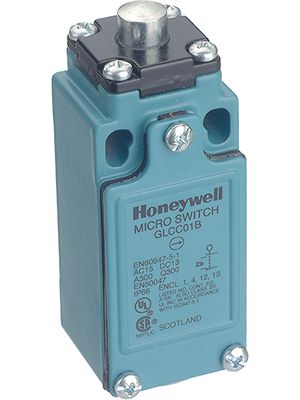

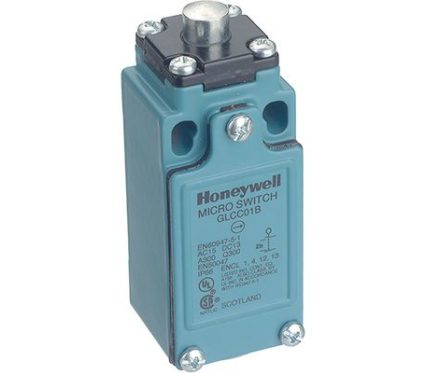

  • GLC-sarjan rajakytkin
  • Tappityönnin
  • 20 mm
  • 1NC 1NO SPDT

Housing material GLC Series and GLE Series: Electrostatic epoxy coated zinc
GLD Series: High-strength glass re-enforced thermoplastic
Actuators Side rotary, top pin plunger, top roller plunger, top roller lever, top wobble actuator
Termination 0.5-14 NPT, PG 13,5, 20 mm, PF 1/2, Deutsch style 4-pin connector
other cable/connector options available, contact the Honeywell Representative
Contact options* GLC metal housing and GLD plastic housing: 1NC/1NO, 2NC, 2NO
GLE metal housing, 1NC/1NO, 2NC, 2NO, 2NC/2NO
Contact type snap-action, slow-action break-before-make (BBM), slow-action make-before-break (MBB), slow action
Contact material silver (standard), gold plated (low-energy applications)
Thermal current (Ith) 10 A
Rated insulation voltage 300 V
Rated impulse voltage 2.5 kV
Sealing NEMA 1, 4, 12, 13; IP66
Operating temperature -40 °C to 85 °C [-40 °F to 185 °F]
Mechanical life Up to 10 million cycles
Pollution code 3
Max. actuation frequency 250 operations/minute; 100 operations/minute (wobbles)
Shock 50 g per IEC 60068-2-27
Vibration 10 g per IEC 60068-2-6
Approvals CE, UL, CSA and CCC1
Conforming to standards CE, EN50047, IEC/EN 60947-5-1; CSA C22.2 #14; UL 508; CCC1 GB14048.5; EN45545-2 (GLC/GLE)

MICRO SWITCH GLS Global Miniature Limit Switches
