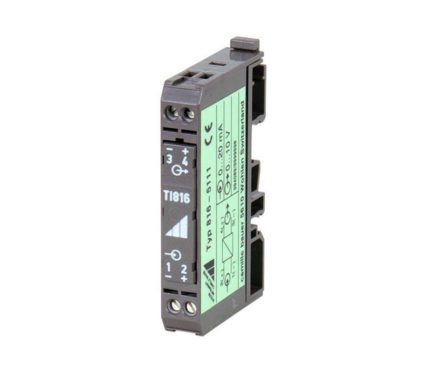

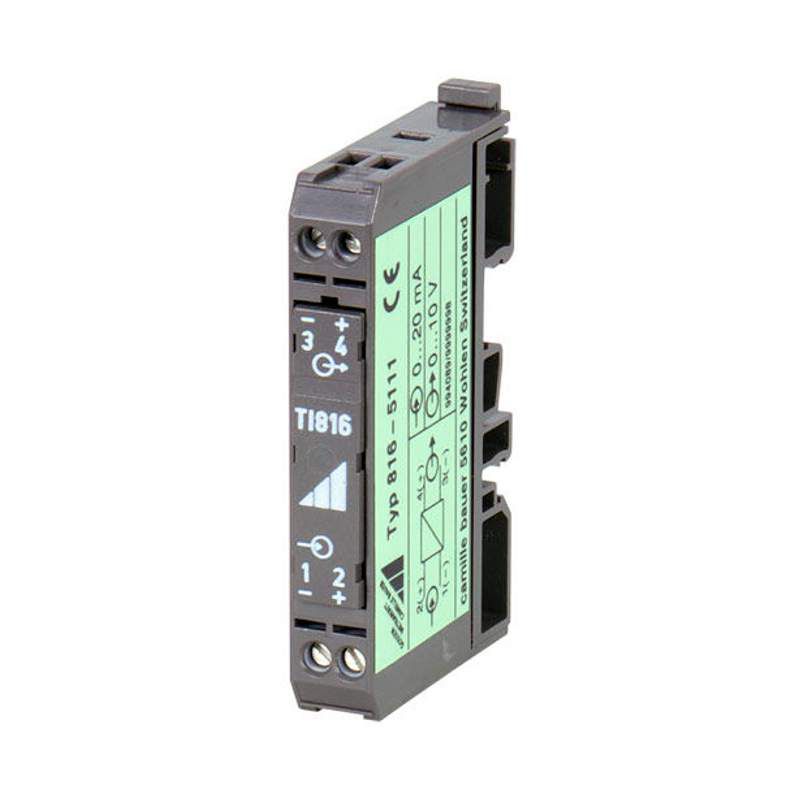

TI816-5110

Galvaaninen erotin

  • Pienikokoinen omavoimainen galvaaninen erotin DC-signaaleille
  • Tulo 0/4…20mA
  • Lähtö  0/4…20mA

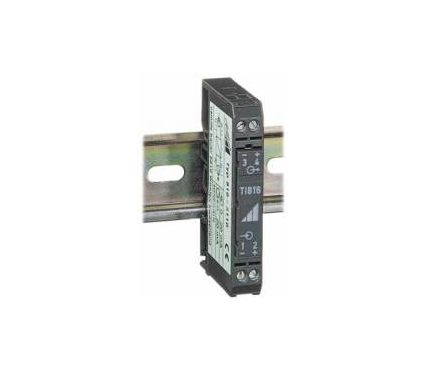

  • Asennus 35 mm DIN kiskolle tai 15 mm – G – kiskolle
  • Mitat: 12,5 x 75,5 x 49,5 mm

Technical data

Input signal E
DC current: 0…20 mA
Max. permissible : 50 mA
Voltage limiter: 18 V ± 5% (with zener diode)
Voltage drop: < 2.1 V (for 500 Ω burden)
Overshoot: < 20 µA (typical 5 µA)

Output signal A
DC current or
DC voltage: 0…20 mA or 0…10 V
Limit: Approx. 30 mA 1
Approx. 15 V 2
Max. burden: 600 Ω1
Internal resistance: 500 Ω2
Residual ripple: < 20 mV ss
Time constant: Approx. 5 ms

Accuracy data
Error limits: < ± 0.1% 1
(reference value 20 mA,
linearity error included)
< ± 0.2% 2
(reference value 10 V,
linearity error included)
Reference conditions:
Ambient temperature 23 °C ± 1 K
Output burden 100 Ω 1
≥ 5 MΩ 2
Additional error:
Burden influence < 0.2% (at 500 Ω) 1
Temperature coefficient < 50 ppm/K

Installation data
Mechanical design: Carrying rail housing N12
Dimensions see section
“Dimensional drawings”
Material of housing: Lexan 940 (polycarbonate)
Flammability Class V-0 acc. to UL
94, self-extinguishing, non-dripping,
free of halogen

Mounting: Snapping
– onto G-type rail
acc. to EN 50 035-G32
or
– onto top-hat rail
acc. to EN 50 022-35 × 7.5
Mounting position: Any
Electrical connections: Screw terminals with wire protection
– for 0.2 to 4 mm2
non-stranded
wires
or
– for 0.2 to 2.5 mm2 strandes
wires
Weight: Approx. 35 g

Regulations
Electrical design: Acc. to IEC 1010
Protection: Housing IP 40 acc. to EN 60 529,
Terminals IP 20
Test voltage: 500 Veff, 50 Hz, 1 min.
Max. surge voltage: 800 V

Ambient conditions
Climatic rating: Climate class 3Z acc. to
VDI/VDE 3540
Operating temperature: – 20 to + 65 °C
Storage temperature: – 40 to + 85 °C
Annual mean
relative humidity: ≤ 75% standard climatic rating
Seismic test: 5 g, < 200 Hz,
2 h in each of 3 directions
Shock test: 50 g
10 shocks in each of 3 directions
Altitude: Max. 2000 m
Indoor use only!
1
With current signal
2
With voltage signal

TI816-5110 TI816 Operating Instructions
