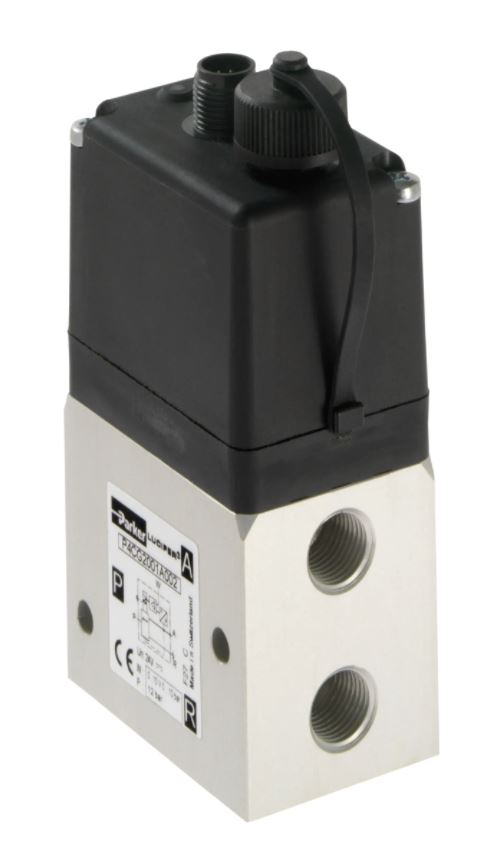

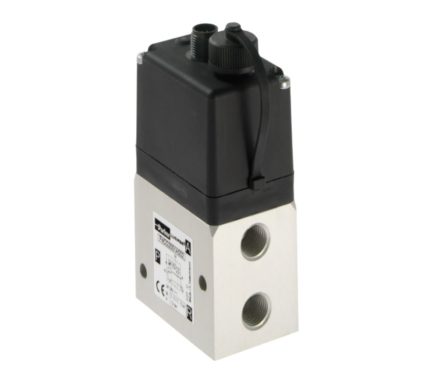

P4CG2001C002

Proportionaaliventtiili

  • Liitäntä G 1/4
  • Ohjaussignaali 4-20 mA
  • Tulopaine 1…12 bar
  • Lähtöpaine 0,05…10 bar

Technical Specifications

  • Maximum Regulating Pressure:10 bar
  • Electrical Connection: M12 – 8 pin; male connector power supply/control signal
  • Control Signal: 4 – 20 mA
  • Port Size: 1/4″ BSP
  • For Fluid Type: Lubricated or non lubricated air, neutral gases
  • Options:
  • Filter Efficiency Rating: 50 MICRON
  • Minimum Ambient Temperature: 0 °C
  • Maximum Ambient Temperature: +50 °C
  • Hysteresis: ± 50mbar (factory set up)
  • Power Supply Voltage: 24V DC ± 15% (Max. ripple 1V)
  • Power Consumption: Max. 2.8 W with 24 V DC and constant changes of the control signal < 1.5 W without change of control signal
  • Minimum Pressure Differential: 0 bar
  • Maximum Pressure Differential: 12 bar
  • Minimum Regulating Pressure:
  • Maximum Flow Rate: 70 m3/hour
  • Operational Life:> 50 Million changes of control signal steps
  • Protection Mode: IP65
  • Specifications Met: EN 61000-6-1: 2001 | EN 61000-6-2: 2001 | EN 61000-6-3: 2001 | EN61000-6-4:2001
  • ATEX Specifications Met:
  • Materials of Construction: Silicon free
  • Vibration Resistance: 30g (in all directions)
  • Mounting Position:Indifferent (recommended position: upright; electronic part on top)
EPP4 series Electropneumatic pressure regulators
