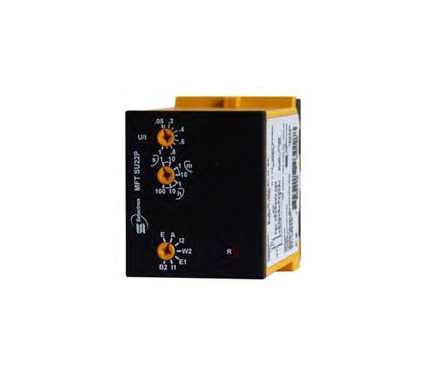

MFT SU22P

Monitoimiaikarele

  • 12…240 VAC/DC
  • 2 × vaihto 8 A, 250 VAC
  • toiminnot: E, A, B2, I1, I2, W2, E1
  • korvaa tyypit MFT U21P ja MFT U22P
  • apujännite liittimiin 2 ja 10

Technical data

Nominal consumption 12 … 240 Vac/dc 6 VA / 2 W
Control contact / Voltage controlled
Parallel switching of loads possible no
Voltage dependence:  Potential free control contact between connections 6 and 7. The internal voltage on these connectors is on the same potential as supply voltage
Connecting length between connections 6 and 7: 10 m or capacity <10 nF
Accuracy
Base accuracy ±1% of scale limit
Repetition accuracy <5 ms or <0,5%
Adjustment accuracy ≤5% of scale limit
Temperature influence ≤0,01% / °C
Reaction times
Operating return time K1 max. 60 ms / 30 ms
Reaction time K2 max. 30 ms
Min. pulse/pause time K2 ac 100 ms / dc 50 ms
Recovery time max. 100 ms
