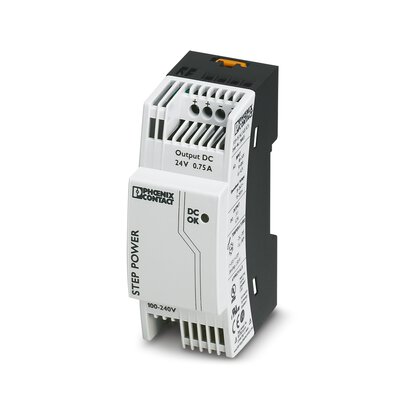

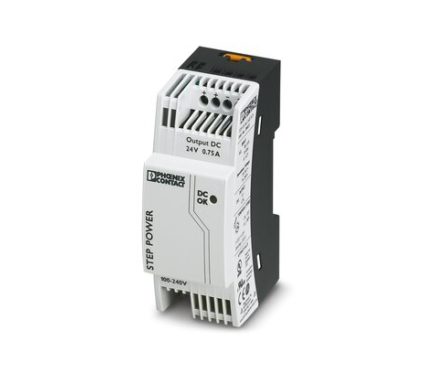

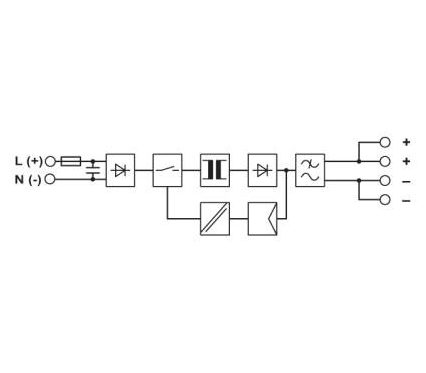

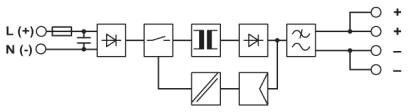

STEP-PS/1AC/24DC/0.75

Step-teholähde

Step-teholähdeperhe on matala, syvyyssuunnassa vain 62 mm. Erityisen hyvin Step soveltuu käytettäväksi rakennusautomaatiossa, koska se on mitoitettu mahtumaan DIN-aukkoon.

  • Lähtöjännite 24  V DC
  • Nimellisvirta 0,75 A
  • 1-vaiheinen
  • Erittäin pieni tyhjäkäyntiteho (<0,7 W)
  • Säädettävä toisiojännite
  • Kiinnitys DIN-kiskoon tai paneeliin
  • Laaja tulojännite (85…264 V AC ja 95…250 V DC)
  • Leveys 36 mm

General data

Insulation voltage input/output 4 kV AC (type test)
3.75 kV AC (routine test)
Degree of protection IP20
Protection class II (in closed control cabinet)
MTBF (IEC 61709) > 926000 h (40°C)
Housing material Polycarbonate
Foot latch material POM (Polyoxymethylen)
Dimensions W / H / D (state of delivery) 36 mm / 90 mm / 61 mm
Weight 0.11 kg

Input data

Nominal input voltage 100 V AC … 240 V AC
Input voltage range AC 85 V AC … 264 V AC
Input voltage range DC 95 V DC … 250 V DC
AC frequency range 45 Hz … 65 Hz
Frequency range DC 0 Hz
Current consumption 0.3 A (120 V AC)
0.2 A (230 V AC)
Inrush current limitation < 15 A (typical)
I
2t < 0.1 A2s
Power failure bypass > 15 ms (120 V AC)
> 70 ms (230 V AC)
Typical response time < 0.5 s
Protective circuit Transient surge protection Varistor
Input fuse, integrated 1.25 A (slow-blow, internal)

Output data

Nominal output voltage 24 V DC ±1 %
Output current 0.75 A (-25°C … 55°C)
0.83 A (-25 °C … 40 °C permanent)
1.4 A (maximum output current)
Control deviation < 1 % (change in load, static 10 % … 90 %)
< 2 % (change in load, dynamic 10 % … 90 %)
< 0.1 % (change in input voltage ±10 %)
Efficiency > 84 % (for 230 V AC and nominal values)
Rise time < 0.5 s (UOUT (10 % … 90 %))
Residual ripple < 75 mVPP (20 MHz)
Peak switching voltages < 15 mVPP (20 MHz)
Connection in parallel Yes, for redundancy and increased capacity
Connection in series Yes
Protection against internal overvoltage < 35 V DC
Resistance to reverse feed ≤ 35 V DC
Power consumption

Maximum power dissipation in no-load condition 0.5 W
Power loss nominal load max. 3.6 W

LED status indicator

Status display ”DC OK” LED green / UOUT > 21.5 V: LED lights up
