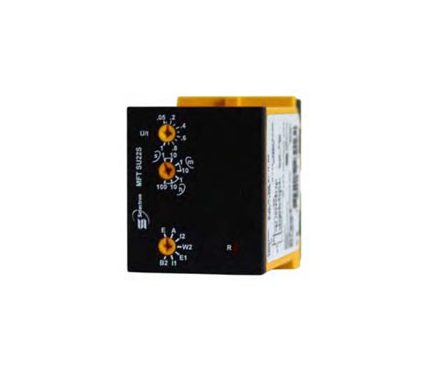

MFT SU22S

Monitoimiaikarele

  • 12…240 VAC/DC
  • 2 × vaihto 8 A, 250 VAC
  • toiminnot: E, A, B2, I1, I2, W2, E1
  • korvaa tyypit MFT U11S, MFT U21S ja MFT U22S
  • apujännite liittimiin 2 ja 10

Technical data

Nominal consumption 12 … 240 Vac/dc 6 VA / 2 W
Control contact / Voltage controlled
Parallel switching of loads possible yes
Parallel minimum load 1 VA or 0,5 W
Voltage dependence: The potential between connections 2 and 5 mustcover 90% supply voltage
Connecting length between connections 2 and 5: 10 m or capacity <10 nF
Connecting length between connections 6 and 7: At 230 VAC 10 VDC <1 mA
Resistance >1 MΩ (contact K2 open)
Rest current at parallel load: approx. 2 mA at contact K2 open
Accuracy
Base accuracy ±1% of scale limit
Repetition accuracy <5 ms or <0,5%
Adjustment accuracy ≤5% of scale limit
Temperature influence ≤0,01% / °C
Voltage influence
Reaction times
Operating return time K1 max. 60 ms / 30 ms
Reaction time K2 max. 30 ms
Min. pulse/pause time K2 ac 100 ms / dc 50 ms
Recovery time max. 100 ms

MFT SU22S
