Technical Specifications
| Availability | Global |
| Pretravel (PT) | 1,78 mm [0.070 in] max. |
| Differential Travel (DT) | 0,38 mm [0.015 in] max. |

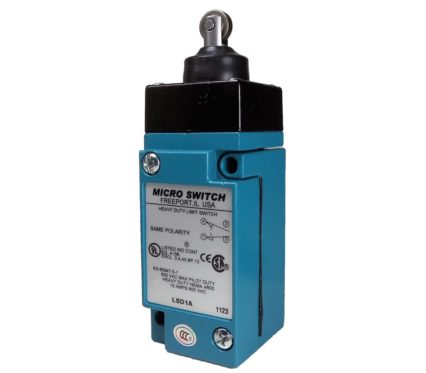

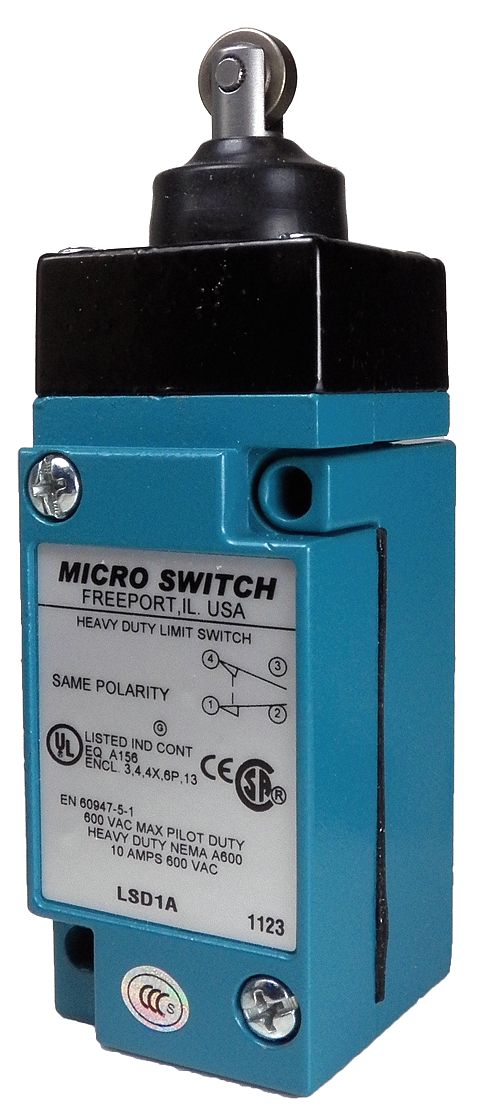

| Actuator | Top Roller Plunger |
| Circuitry | 1NC 1NO SPDT Snap Action, Double Break |
| Housing Material | Zinc Die-Cast |
| Sealing | NEMA 1, 3, 4, 4X, 6, 6P, 12, 13 |
| Series Name | HDLS |
| Operating Temperature | -12 °C to 93 °C [10 °F to 200 °F] |
| Agency Approvals and Standards | UL, CE, CSA, CCC. EN60947-1, EN60947-5-1 |
| UNSPSC Commodity | 39122213 Limit Switches |
| Operating Force (OF) | 17,79 N [4 lb] max. |
| Overtravel (OT) | 0.190 in min. |
| Product Type | MICRO SWITCH Heavy-Duty Limit Switches |
| Termination Type | 0.5 in – 14NPT Conduit |
| Supply Voltage | 600 Vac and 250 Vdc max. |
| Ampere Rating | 10 A (Thermal) |
| Housing Type | HDLS Plug-in |
| UL File # | E37138 |
| Comment | Head can be set at 90 degree increments for cam or slide actuation |
| UNSPSC Code | 39122213 |
| Sealed | Industrial |
