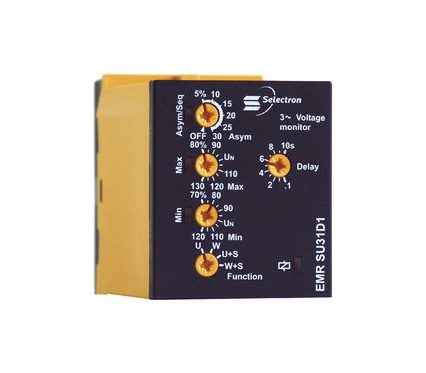

Technical data
Nominal consumption 3(N) ~230/132 V, 6 VA (2 W)
3(N) ~400/230 V, 9 VA (2 W)
Nominal frequency 48 … 63 Hz
Drop-out voltage >20% of the nominal voltage
Base accuracy ±5% (of maximum nominal value)
Adjustment accuracy ±5% (of maximum nominal value)
Repetition accuracy ≤2% (of maximum nominal value)
Temperature influence ≤0.1% / °C
Recovery time 500 ms
Measuring circuit: Measured variable ac sine (48 … 63 Hz)
Input:
3(N) ~132/230 V Terminals (N)-L1-L2-L3
3(N) ~230/400 V Terminals (N)-L1-L2-L3
Overload capacity:
3(N) ~132/230 V -30% … +30%
3(N) ~230/400 V -30% … +30%
Input resistance:
3(N) ~132/230 V according to nominal voltage 6 VA / 2 W
3(N) ~230/400 V according to nominal voltage 9 VA / 2 W
Switching threshold:
Max: 80% … 130% of UN
Min: 70% … 120% ofUN
Asymmetry: 5% … 30%
